Description
- Place of Origin:Henan, China
- Brand Name:Kingyear
- Model Number:Electric Wire
- Insulation Material:PVC
- Type:Insulated
- Application:House wiring / Construction
- Conductor Material:Copper
- Jacket:Non
- Product name:Copper Stranded Flexible Pvc Insulated Electrical Wire In Philippines
- Conductor type:Solid Conductor
- Color:Yellow, Blue, Black, Green,Red
- Certification:ISO9001, ISO14001, OHSAS
- Rated Voltage:300/500V
- Core:1~7 Core
- Service:OEM & ODM Are Available
- Standard:IEC 60227
- Package:100 Meters/roll or As Request
- Warranty:100% Quanlified
-
- Supply Ability
- 10000 Kilometer/Kilometers per Month
- 500 Meter/Meters(Min. Order)
- Packaging DetailsElectrical Wire Packaging Details:Wooden drum or steel wooden drum or coil or customized can be accepted
-
- Port
Qingdao Shanghai Ningbo Guangzhou

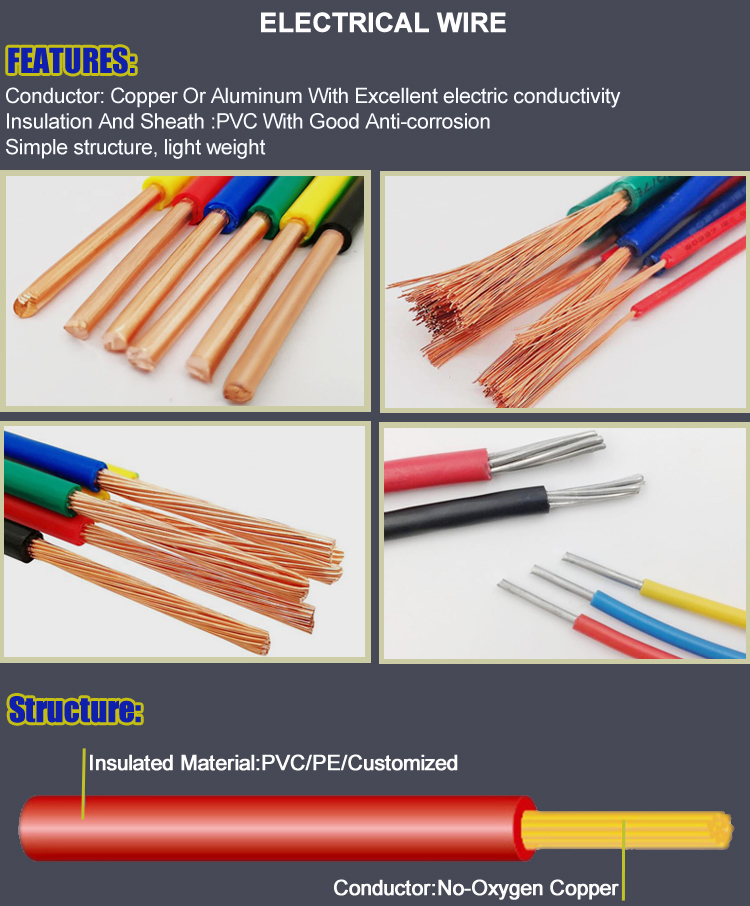

- Picture Example:
Copper Stranded Flexible Pvc Insulated Electrical Wire Prices In Philippines Tps Cable 1.5 Sq mm Bvr IEC 60227
WHY CHOOSE US
PRODUCT DESCRIPTION
KINGYEAR Cable is one of the leading cable products production enterprise in China,our mainly products are electrical wire, power cable, control cable, bare conductor (AAC/AAAC/ACSR) and ABC Aerial Bundled Cable.
Regards the Copper Stranded Flexible Pvc Insulated Electrical Wire Prices In Philippines Tps Cable 1.5 Sq mm Bvr IEC 60227
Applications:
Electrical wires is suitable for use in power installations, fixed wiring and flexible
connections for electrical appliances like lighting, electronic equipment, instrument
and communication equipment with rated voltage 450/750V or less.
Advantages of electricity cable wire insulated
1. Excellent electric and mechanical characteristics
2. Best Resistance chemical corrosion and heat-ageing,environment stress and flame-retardant
3. Simple in structure,Convenient to use
4. Reduce costs
Electrical wires is suitable for use in power installations, fixed wiring and flexible
connections for electrical appliances like lighting, electronic equipment, instrument
and communication equipment with rated voltage 450/750V or less.
Advantages of electricity cable wire insulated
1. Excellent electric and mechanical characteristics
2. Best Resistance chemical corrosion and heat-ageing,environment stress and flame-retardant
3. Simple in structure,Convenient to use
4. Reduce costs
|
Electrical wires types
|
|
|
Model
|
eletric wire electrical wire cable
|
|
BV
|
Copper Core PVC Insulation Wire
|
|
BLV
|
Aluminum Core PVC Insulation Wire
|
|
BVR
|
Copper Core PVC Insulation Flexible Wire
|
|
BVV
|
Copper Core PVC Insulation PVC Sheath Round Wire
|
|
BVVB
|
Copper Core PVC Insulation PVC Sheath Flat Wire
|
|
BLVVB
|
Aluminum Core PVC Insulation PVC Sheath Flat Wire
|
|
BV-90
|
Copper Core Heat-resistance 105oC PVC Insulation
|
|
Technical data of Electrical wire,any customized is available.
|
||||||||
|
Nominal
sectional area mm2 |
Conductor
No/Dia. mm |
Nominal
Insulated thick mm |
Max overall
Dia. mm |
Condcutor
Resistance at 20 |
Min insulated
resistance at 70MΩ/km |
Weight
Kg/km |
||
|
Cu
|
Al
|
Cu
|
Al
|
|||||
|
0.5
|
1/0.8
|
0.6
|
2.4
|
36.0
|
0.015
|
8.41
|
||
|
0.75
|
1/0.97
|
0.6
|
2.6
|
24.5
|
0.012
|
10.6
|
||
|
1
|
1/1.13
|
0.6
|
2.8
|
18.1
|
0.011
|
14.5
|
||
|
1.5
|
1/1.38
|
0.7
|
3.3
|
12.1
|
–
|
0.011
|
19.2
|
–
|
|
1.5
|
7/0.52
|
0.7
|
3.5
|
12.1
|
–
|
0.010
|
20.6
|
–
|
|
2.5
|
1/1.78
|
0.8
|
3.9
|
7.41
|
11.8
|
0.010
|
30.8
|
15.0
|
|
4
|
1/2.25
|
0.8
|
4.4
|
4.61
|
7.39
|
0.0085
|
45.5
|
21.0
|
|
6
|
1/2.76
|
0.8
|
4.9
|
3.08
|
4.91
|
0.0070
|
65.0
|
29.0
|
|
10
|
7/1.35
|
1.0
|
7.0
|
1.83
|
3.08
|
0.0065
|
110.0
|
52.0
|
|
16
|
7/1.70
|
1.0
|
8.0
|
1.15
|
1.91
|
0.0050
|
170.0
|
70.0
|
|
25
|
7/2.14
|
1.2
|
10.0
|
0.727
|
1.20
|
0.0050
|
270.0
|
110.0
|
|
35
|
7/2.52
|
1.2
|
11.5
|
0.524
|
0.868
|
0.0040
|
364.0
|
150.0
|
|
50
|
19/1.78
|
1.4
|
13.0
|
0.387
|
0.641
|
0.0045
|
500.0
|
200.0
|
|
70
|
19/2.14
|
1.4
|
15.0
|
0.268
|
0.443
|
0.0035
|
688.0
|
269.0
|
|
95
|
19/2.52
|
1.6
|
17.5
|
0.193
|
0.320
|
0.0035
|
953.0
|
360.0
|
|
120
|
37/2.03
|
1.6
|
19.0
|
0.153
|
0.253
|
0.0032
|
1168.0
|
449.0
|
|
150
|
37/2.25
|
1.8
|
21.0
|
0.124
|
0.206
|
0.0032
|
1466.0
|
551.0
|
|
185
|
37/2.52
|
2.0
|
32.5
|
0.099
|
0.164
|
0.0032
|
1808.0
|
668.0
|
RELATED PRODUCT
Similar Products（Different structure; Different size）
Standard: IEC60227
Any customized standard are all can be designed by our R&D team.
COMPANY STRENGTH
COMPANY PROFILE
HENAN KINGYEAR GROUP was founded in 2006,located in the Gongyi industry area of Henan Province.Occupies more than 1200,000 square meters,more than 800 employees.Our company consists of 3 main subsidiaries,Business specialized in development,manufacture and distribution of aluminum and cable products.Mainly including aluminum plate,aluminum coil,bare aluminum conductor,aerial bundled cable,Low voltage and medium voltage power cable,Electrical wire,control cable,etc… CLICK MORE
PLANT AND OFFICE SHOWN:
3 workshops of Copper/Aluminum Conductor Electrical/Electric Cable Wire. 1 office building of international trade.

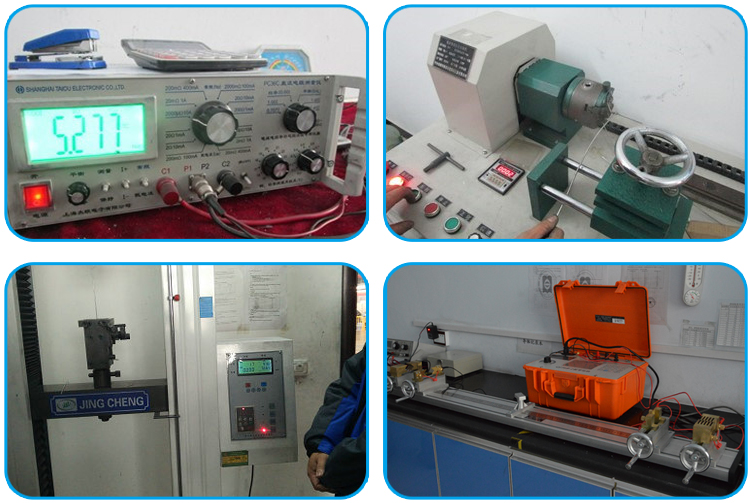

TESTING MACHINE SHOWN:Copper stranded flexible pvc insulated electrical wire tps cable bvr iec 60227 testing :
CERTIFICATE SHOWN:
ISO,CE,CCC,ROHS,UL,VDE of copper stranded flexible pvc insulated electrical wire tps cable bvr iec 60227 testing.
CUSTOMER
After more than 20 years of development, our customers have spread to more than 40 countries and regions around the world, And more than 50% are old customers.The power cable,control cable,ABC cable,bare conductor(AAC/AAAC/ACSR) are more favorited by them.We are proud of our good quality—KINGYEAR CABLE.
PACKAGE

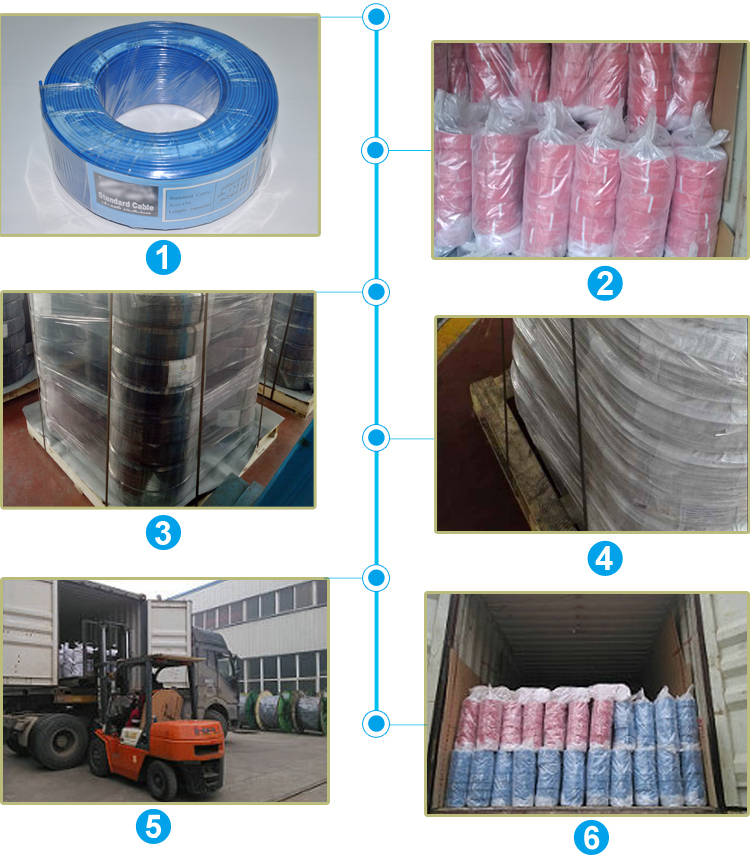

PACKAGING FLOW of cable copper electric wire as below, customized is accepted.
FAQ
Q:I didn’t find the eletric wire/ electrical wire cable which I need in this page?
A:If you didn’t find the species of cables you need, please contact us directly, we will reply you quickly.
Q:What’s your minimum order quantity?
A:It is not so sure, you can confirm it with us. Normally, it will be 1000 meters.
Q:What’s your delivery time?
A:It depends on whether we just has the stock for your type.Normally,it takes about 7-15days to achieve production.
Q:How can I get a sample from your company? Is the sample free?
A:If you need the sample to check the quality, please contact us,we will send you the free sample, but the freight charge should be paid.
Q:How to ensure quality ?
A:For any quality problems, we will arrange the technical personnel to solve or return the goods as soon as possible, and bear the corresponding customer losses.
Q:What if the cable which we need have some differences on specifications from yours?
A: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc.
