Chine high quality 600v Solid Aluminum copper Concentric Split single phase with aluminum neutral aerial service cable

SKU: 1600441546456
In Stock
Login to view prices

SKU: 1600441546456 Category:

Description

  • Place of Origin:Henan, China
  • Brand Name:AOGULI
  • Model Number:OEM
  • Insulation Material:Xlpe
  • Type:LOW VOLTAGE
  • Application:Industrial
  • Conductor Material:Aluminum
  • Jacket:PVC
  • Certificate:CCC,ISO,CE,VDE,
  • Color:Black,Yellow, Green, Red, Blue
  • Conductor:Copper or aluminum
  • Voltage:600/1000V
  • Standard:IEC60502-1 , UL854 ,ASTM,BS 7870
  • Warranty:100%quanlified
  • Price:Within 12 Hours
  • Package:paper/wodden reel or plastic shrink
  • Hot-Sales Size:8AWG ~ 4AWG 6 ~ 25mm2
  • Product name:concentric cable
  • Supply Ability
    50000 Piece/Pieces per Month power cable
  • Packaging Details

    Packed in wooden case on pallet or according to your requirements for power Cable

  • Port

    Qingdao/Tianjin/Shanghai/Guangzhou

  • Picture Example:

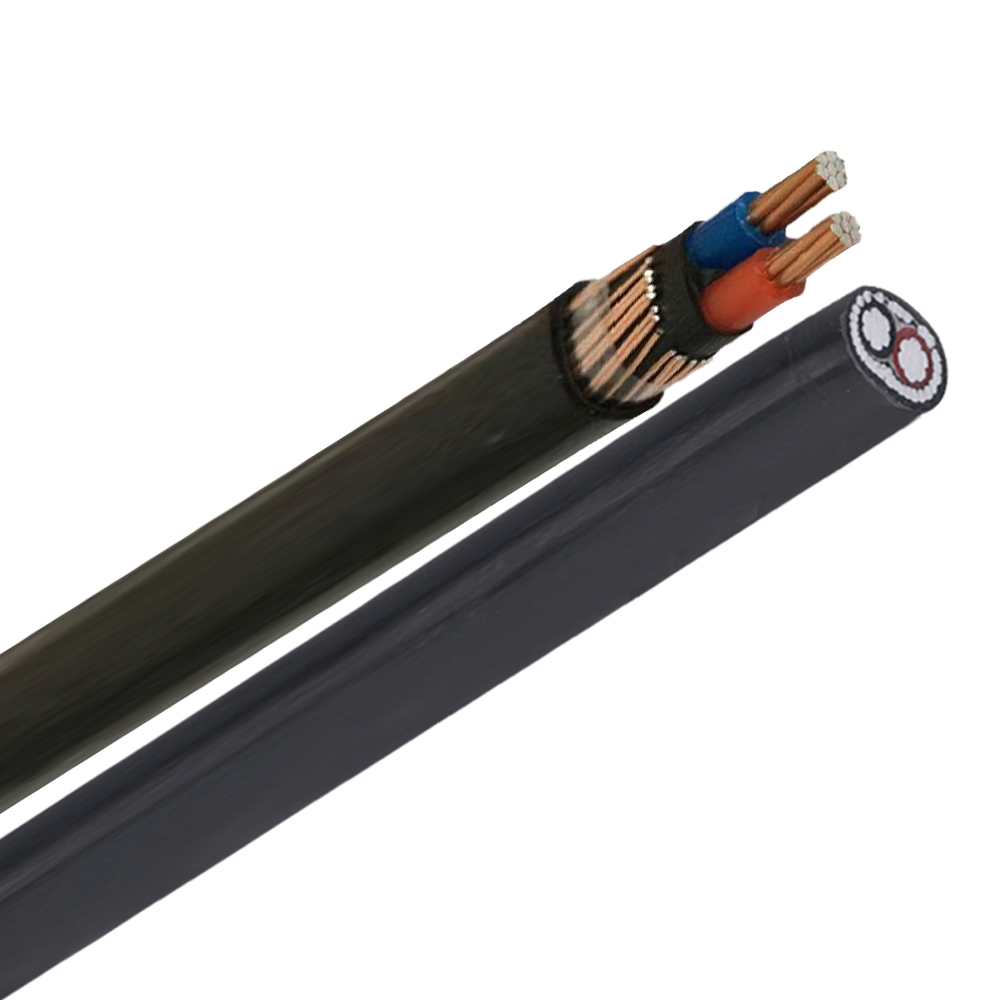

Concentric cable LV :

The concentric cable is used in electric service entrance from the power distribution network to the meter pannel (especially where it is required to prevent electricity theft), and as feeder cable from the meter pannel to the distribution pannel. This cable an be used in dry and wet places, outdoors or directly buried.It has a maximum operating temperature of 90ºC and rated voltage of 600V&below.

Standards :ASTM, IEC, BS, DIN, CSA, NFC, and so on.

Construction:

1.Solid or stranded copper/aluminum conductor 2.Insulation with XLPE, PE, or PVC 3.For cables of two-phase or three-phase conductors, round or flat shape available 4.PVC inner COVERING 5.Concentric layer of helically layed copper/aluminum wires 6.Wrapping tape 7.Black XLPE, PE, or PVC jacket

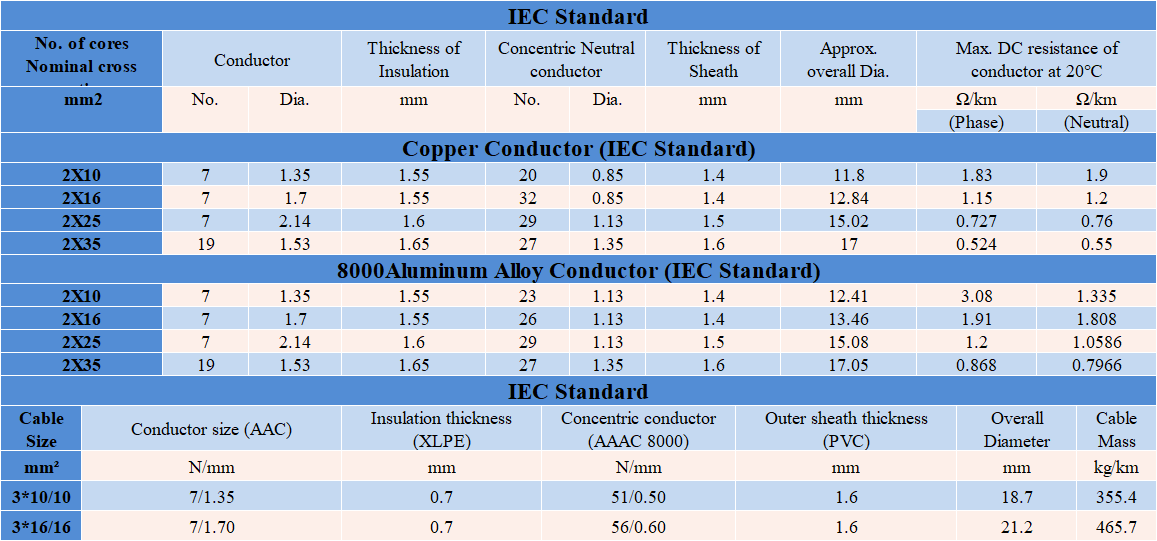

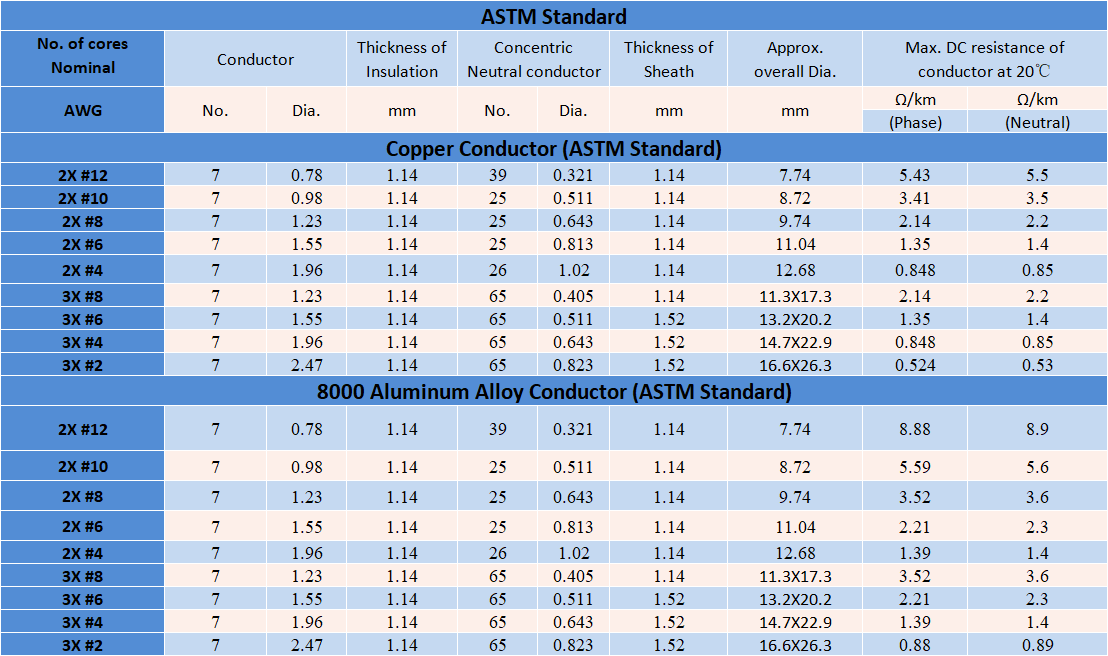

CABLE CONSTRUCTION:
1.Core number: 1+1C2.Concentric Layer , XLPE/PE/PVC Jacket3.Conductor : Cu/Al/Al 8000/CCA4.Insulation : XLPE/PVC/PE5.Bedding (applicable for 2cores and above) : PVC /PE

6.Neutral conductor : Same material as phase conductor, concentric stranded with coverage ≥50%7.Jacket : PVC /PE/ , Weather resistant8.Cable shape : Round or Flat

power cable , ABC cable , aaac cable , aac cable, acsr cable
