48 Channel seismic Surveying Instrument cable for desert oil and gas survey

SKU: 1600503158349
In Stock
Login to view prices

SKU: 1600503158349 Category:

Description

  • Model Number:DT-4
  • Type:Fiber Optic Cable
  • Place of Origin:Hebei, China
  • Brand Name:DTCC
  • Number of Conductors:4
  • Product name:seismic Surveying Instrument cable
  • Color:Orange
  • Application:Land, Mountain,Jungle, Dersert etc
  • Tensile Strength Range:100daN/300daN
  • Working temperature:-40 to 70 deg C
  • Jacket material:TPU
  • Number of flexing:≥3000
  • Number of FDU Lid-Assembly:4-5 pieces
  • Supply Ability
    50000 Set/Sets per Month
    10 Set/Sets(Min. Order)
  • Packaging Details

    carton box,tray

  • Port

    Tianjin

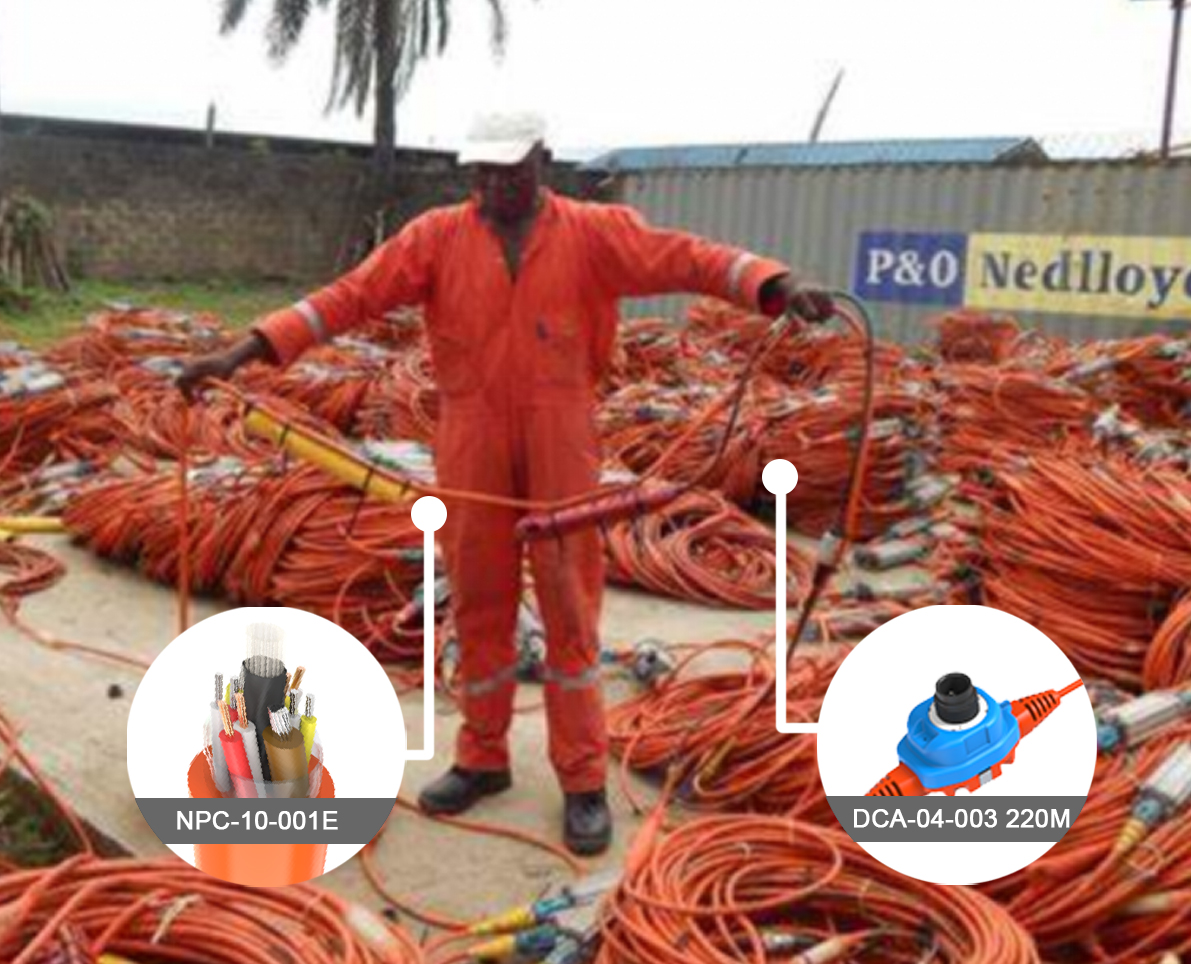

  • Picture Example:

Product Features
For the most popular land seismic systemIts excellent properties and reliable are approved by the field deployments.Apply largely, and it can generate all kinds of geophones (analog or digital; 1-C or 3-C)working Environment: Land, Mountain,Jungle, desert etc.The color of cable is orange, the outside diameter Φ6.5 mm@ ST+/Φ9.5 mm @ WPSR The numbers of FDU/LINK can be any more, maybe 4 or 5 as you need

PRODUCT SPECIFICATIONS
Item
ST+
STSR
WPSR
WPSRLR
Type of field
Dry
Dry
Dive
Dive
Water blocking material
No
No
Yes
Yes
Maximal operational
depth in water
Rainy
Rainy
15m
15m
Outside diameter
6.5mm
9.5mm
9.5mm
9.5mm
Kevlar
Yes
Yes
Yes
Yes
Jacket material
TPU
TPU+TPU
TPU+TPU
PE+TPU+TPU
Jacket color
Orange
Orange +Orange
Orange +Orange
Nature+Orange +Orange
Operating temperature range
-40℃~+70℃
-40℃~+70℃
-40℃~+70℃
-40℃~+70℃
Storage temperature range
-55℃~+85℃
-55℃~+85℃
-55℃~+85℃
-55℃~+85℃
Number of flexing
≥30000
≥30000
≥30000
≥30000
Weight
50kg/km
95kg/km
95kg/km
93kg/km
Pull(with connectors)
700N
3000N
3000N
3000N
Why Choose Us
Good material,factory price,professional test
1.Factory price

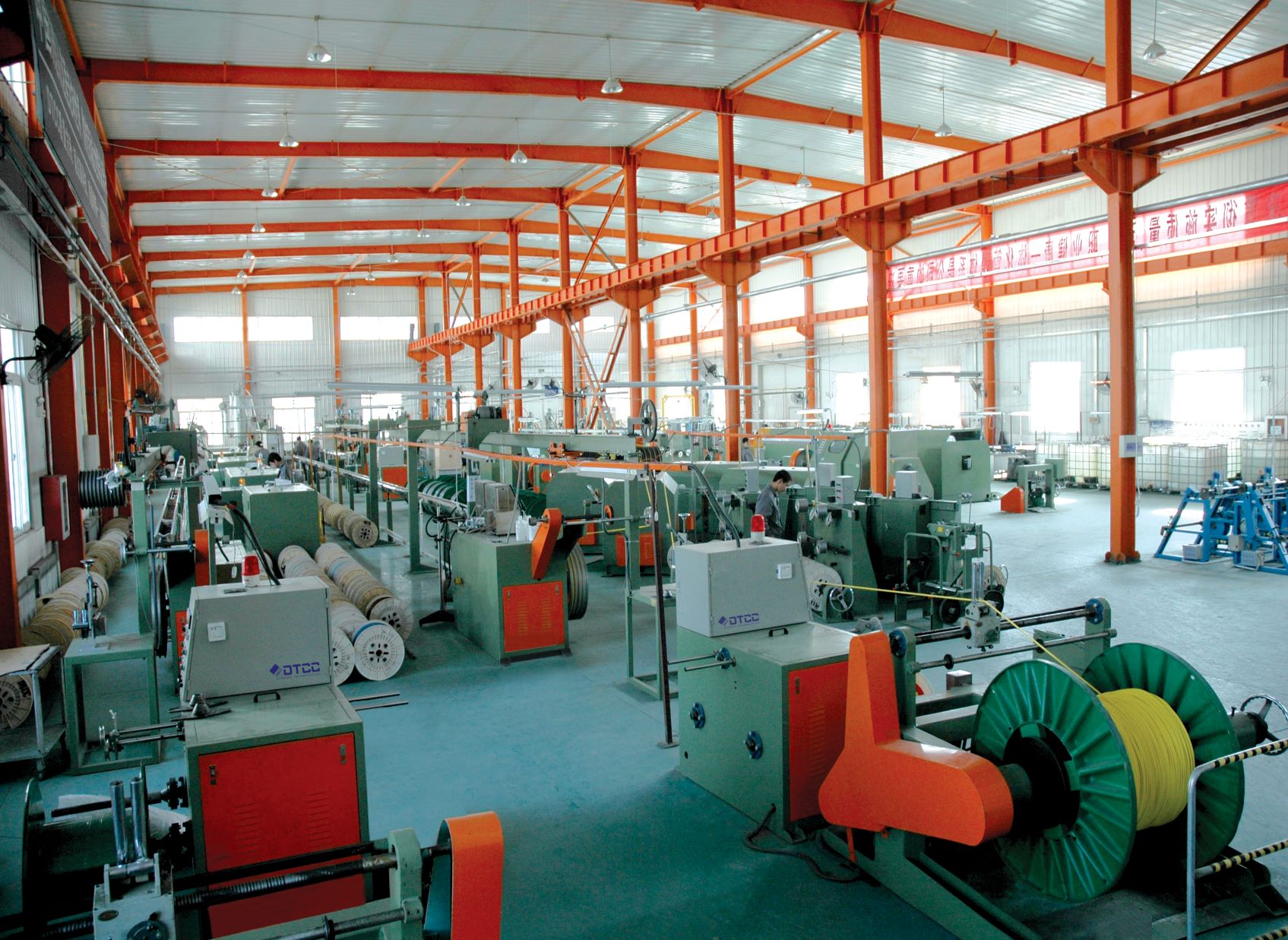

We can manufacture 9 million meters of digital cable for harsh environment

2.Supper good material
pins are coated with gold,cores are Oxygen-free copper,Jacket is TPU
3.Professional test

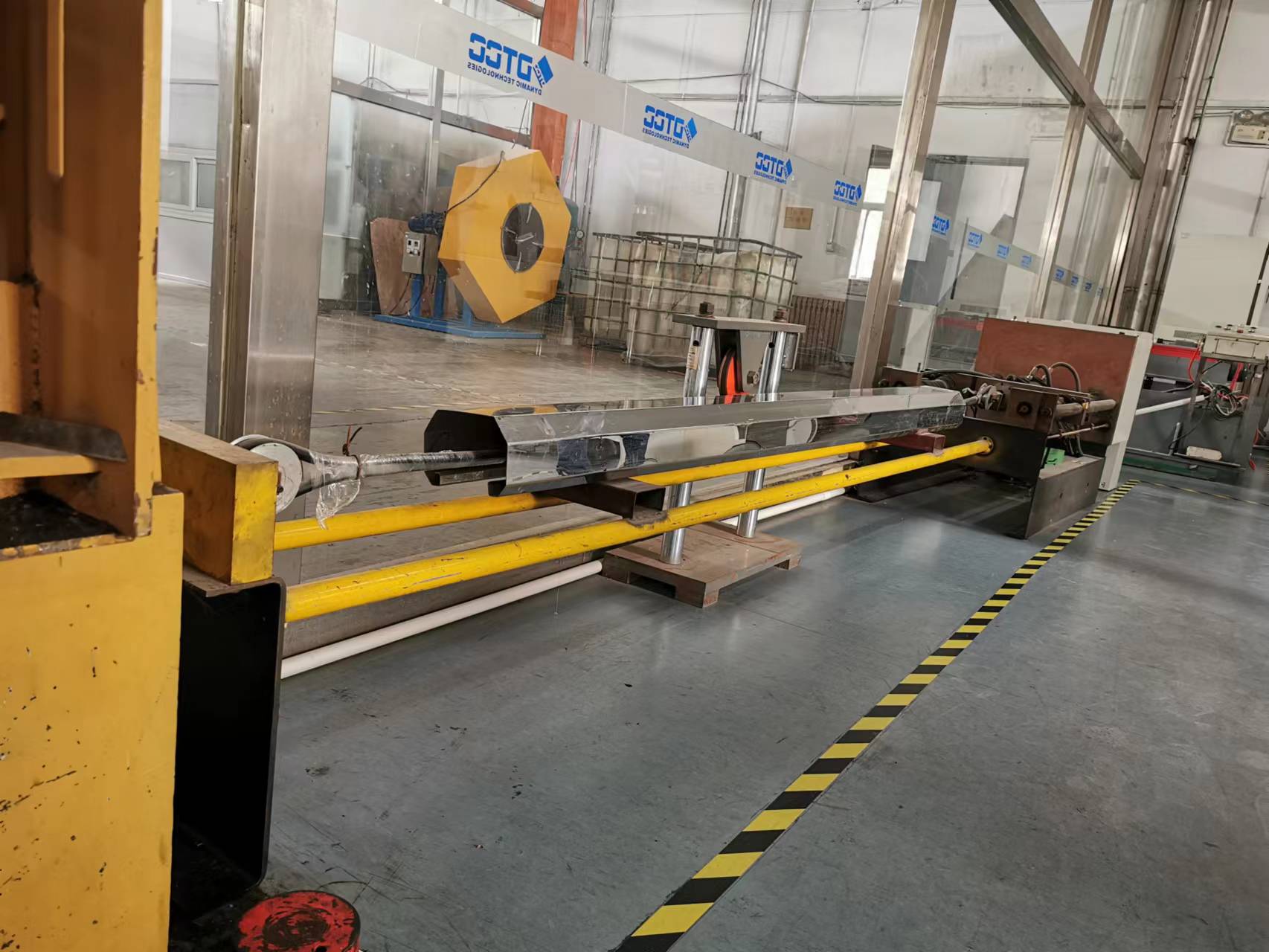

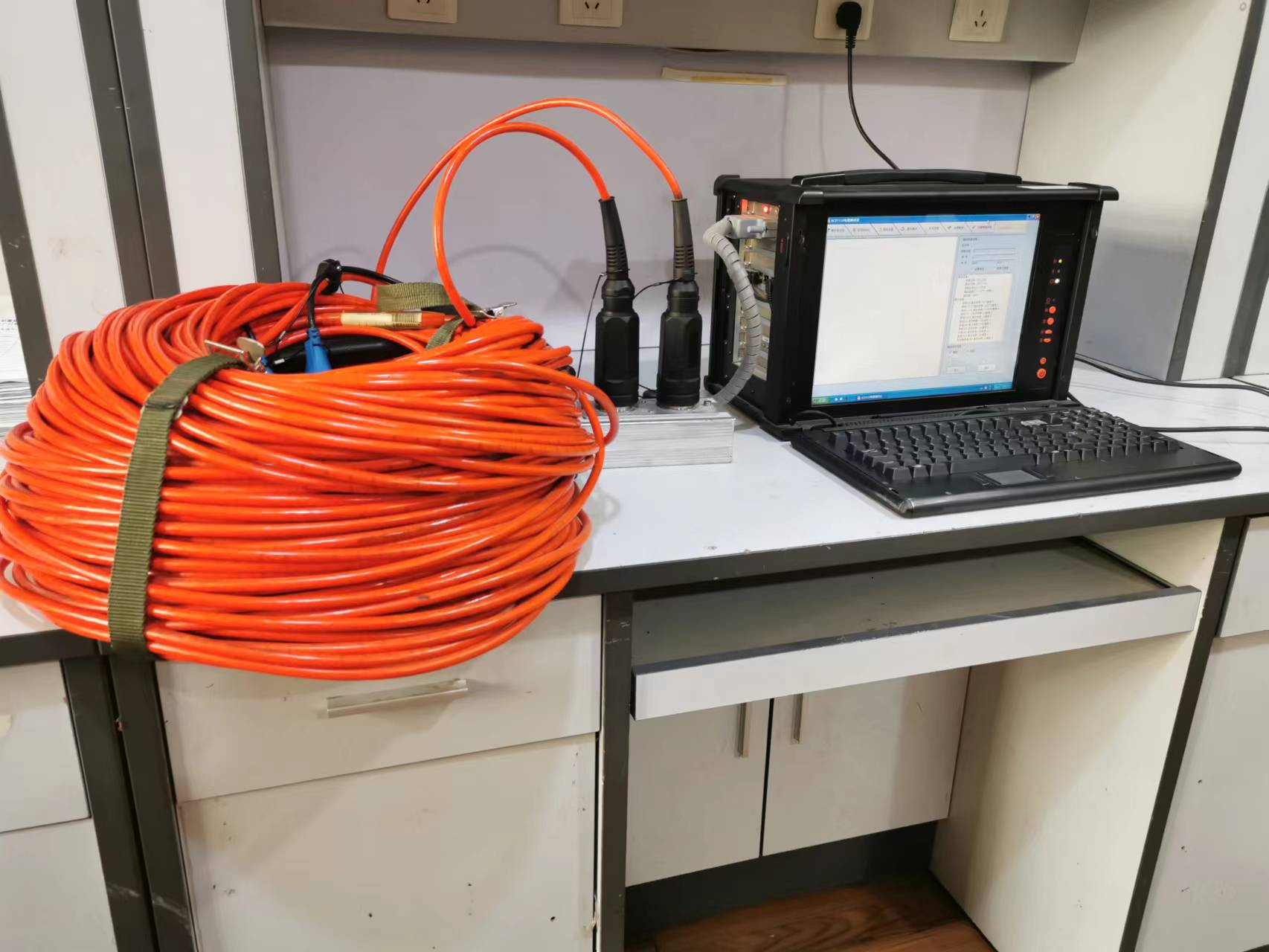

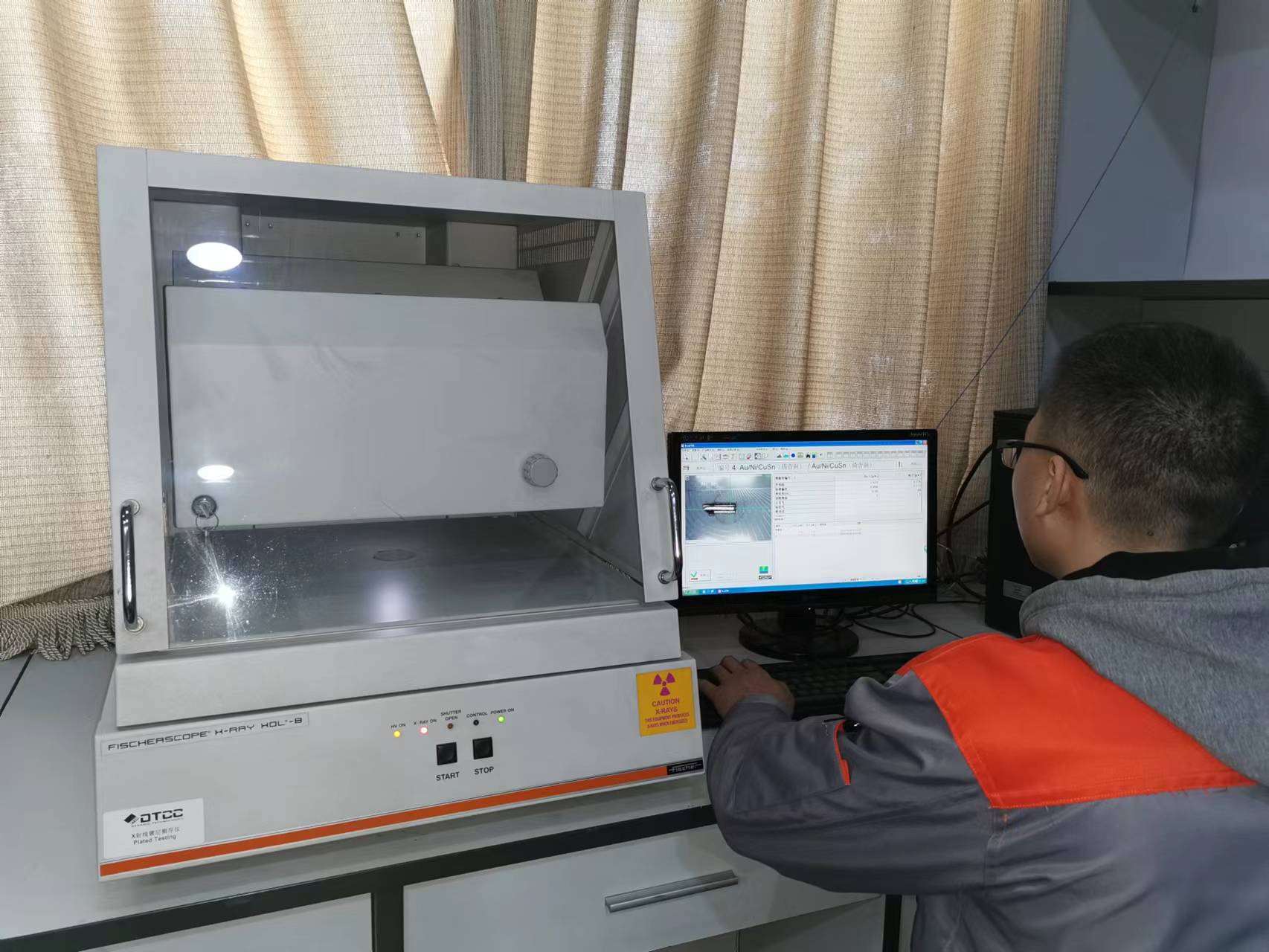

Our laboratory test mechanical,electrical,physical characteristic

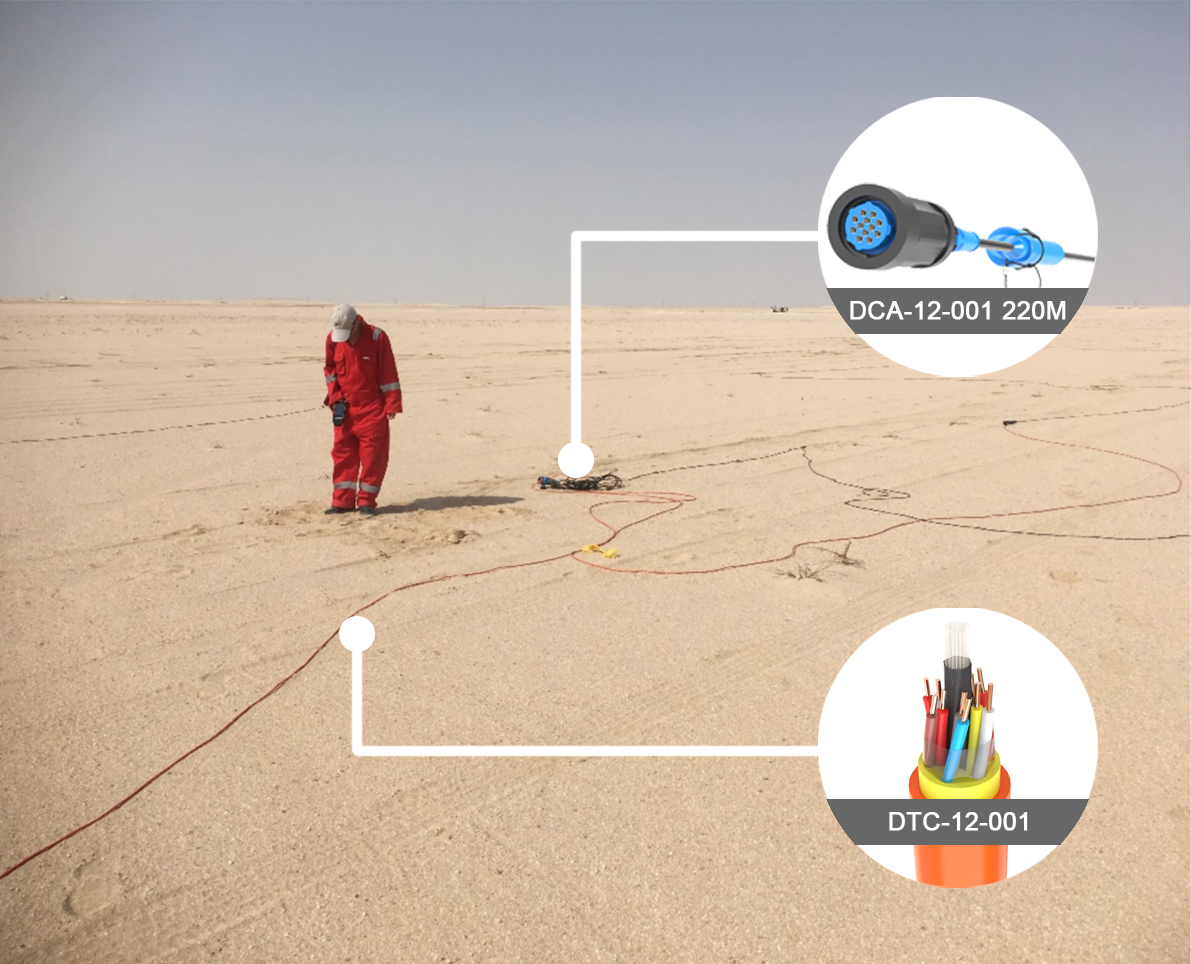

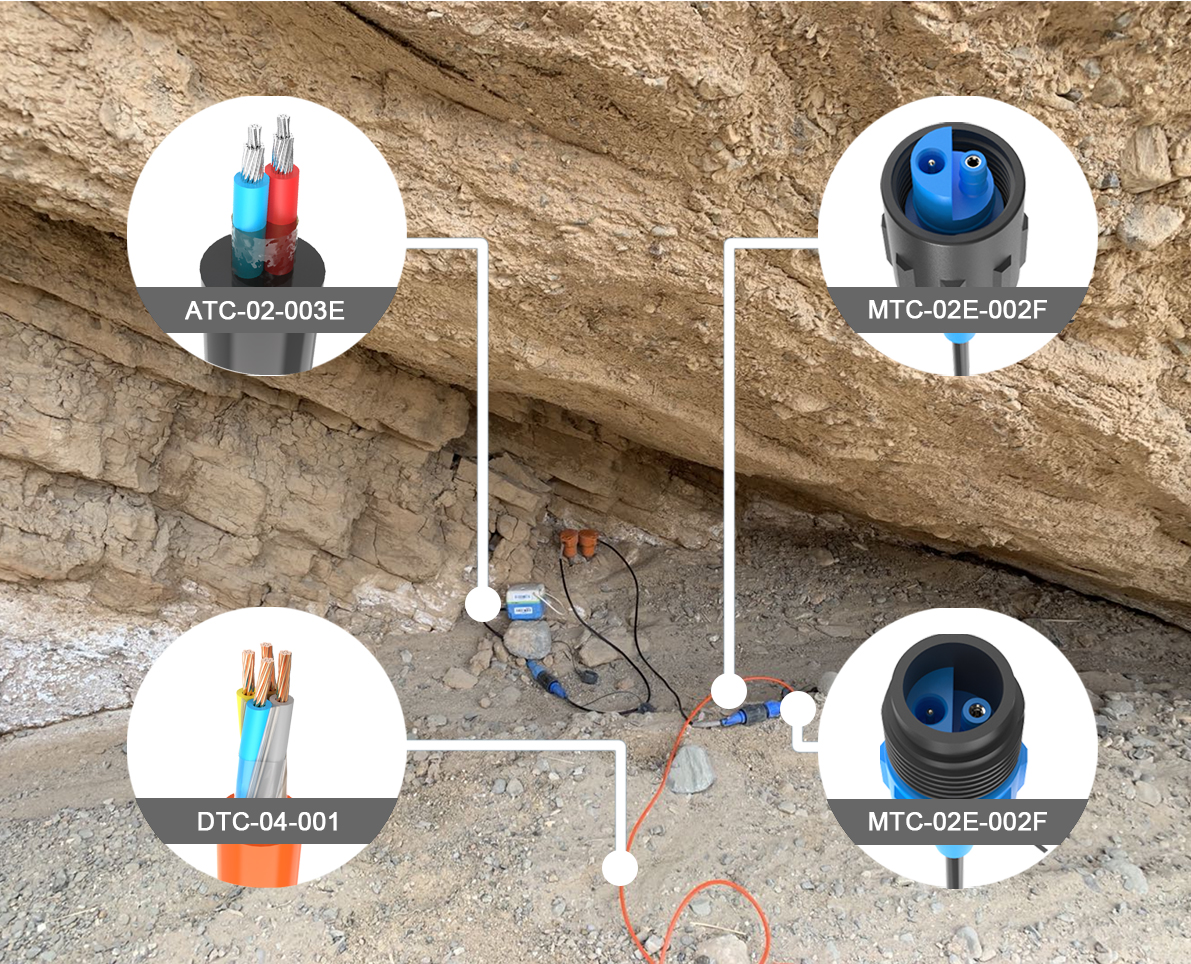

Application
Recommend Products

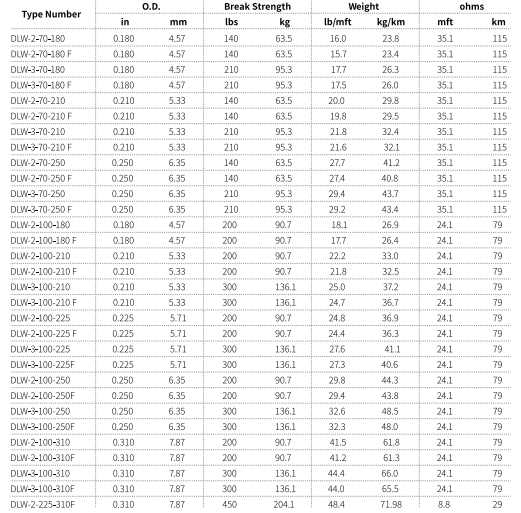

DTCC LEADER WIRES (DLW) model selection

1.Manufacturer brand:DTCC LEADER WIRES(DLW)
2.Number of conductorsTypical number of conductor: 2,3.
3.Break strength per conductor lbsTypical break strength of each conductor.70lbs,100lbs, 225Ibs4.Wire ODwire outside diameter in inches(Typically)l.E 0.18”,0.210”,0.250″,0.310”.5.lndicates gel filled“F” indicates the Wire is filled with water blocking gel

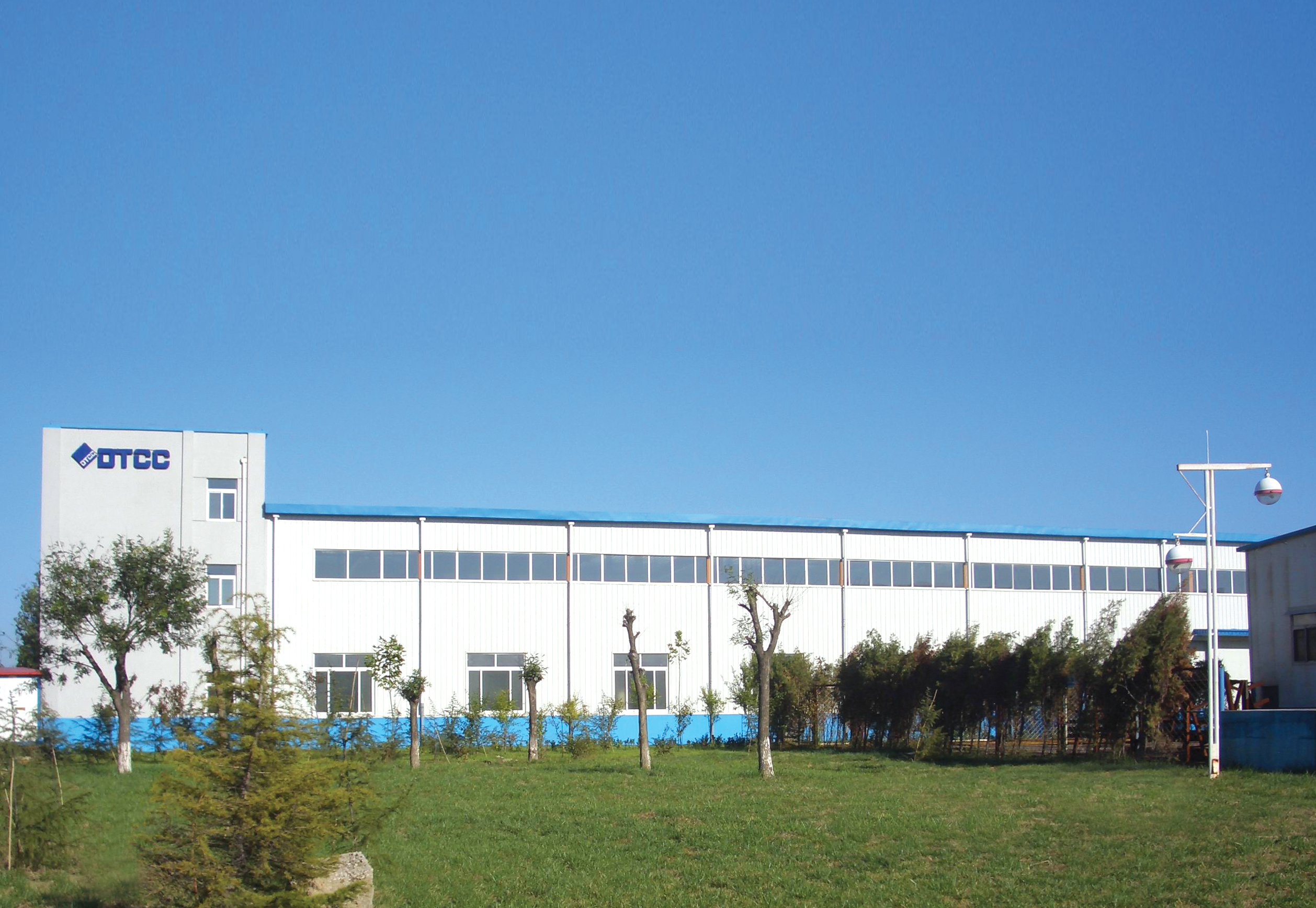

Company Profile

About Us

DTCC offers a wide range of data transmission cables for harsh field, subsea or aquatic applications. Its high reliability and convenience of connection ensure that customers can easily connect various devices for stable data transmission. It is the most popular digital signal transmission cable, and its excellent performance and reliability have been proved by a large number of field applications.

DTCC digital cable series of high-reliability is composed of 2-core to 60-core products. According to different use environments,some digital cables with armored protective layer, acid and alkali corrosion resistant protective sleeve, water resistant coating are provided to achieve the low transmission loss ensuring the further and more accurate effective stable transmission.
With our strong cable manufacturing capability,we can design and manufacture bulk cables for your finished product assembly.
Certifications
FAQ
Q1- Is the MOQ negotiable?

A1- Yes, MOQ is negotiable, while the unit price is different according to the order quantity.

Q2- How long is the lead time?
A2- Lead time depends on the order quantity. Normally 5-15 days and special case 30-40 days in sales peak season. Please contact us for details.

Q3- Can you make the according to my design?
A3- Yes, we can. Please contact us with your requirement or drawing.

Q4- Can I arrange third party inspection?
A4- Yes, we welcome QC from customers and third-party inspection.

Q5- Can I ask for samples?
A5- Yes, we can supply you free sample 50-100 cm cable,not whole set.
